FEATURES
Each device is Individually tested for accuracy and undergoes rigorous testing
The only LED pulse oximeter that can read and display up to 100% for SpO2 value
Lightweight, compact, attractive makes it easier to carry, and simple operations
SpO2 and PR High & Low Alarm settings.
Very low power consumption with power indicator; two AAA batteries can power the SatTip Oximeter continuously for up to 6 hours
Multi colors OLED display with Adjustable brightness
Displays SpO2, PR, SpO2 waveform (pleth or line)
Displays signal strength
Beep on Pulse (on/off) and Demo mode.
Automatically powered off when not in use for longer than 8 seconds
Four directional display modes, convenience to overview the data
Accommodates widest range of finger sizes from pediatric to adult
Bluetooth connectivity optional to export real timedata
TECHNICAL CHARACTERISTICS Working Environment
Operating Temperature : 41 to 104ºF
Operating Humidity : 10 to 95% RH (non-condensing)
Atmospheric pressure : 57.3 kPa to 106.0 kPa
Storage Environment
Storage Temperature : 14 to 104ºF
Storage Humidity : 10% RH – 95% RH 14 to 104ºF
Atmospheric pressure : 57.3 kPa to 106.0 kPa
SpO2 Measurement
Range : 35 – 99%
Resolution : 1%
Accuracy : 70 ~ 100%: +/- 2%. For 0 ~ 69%: unspecified
Method : Dual wavelength LED
Security System
Anti-Electroshock Type : Class II Oximeter And internal Powered Oximeter
Anti-Electroshock Degree : BF Type
Waterproof Degree : IPX2
Working System : Continuous Running Oximeter
Display Screen
Type : LED or OLED
Size : OLED: 0.96inch
Resolution : 128 x 64
Physical Characteristics
Size : 64.5 x 38.2 x 35 (L x W x H)
Weight : 44g
Battery & Regulatory Compliance
Operating Batteries : Two 1.5 Volt AAA Batteries
EMC : EN 60601-1-2:2015
EMC Type : Class A

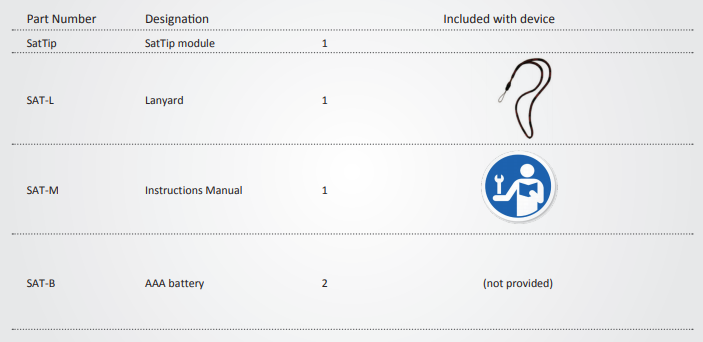

ORDERING
DOWNLOADS Click to download
