Provides real-time data of EtCO2, InsCO2, Capnogram and Respiration Rate
Supports monitoring patients with high respiration rates, up to 150 rpm
Supports intubated and non-intubated patients
Sensitive CO2 detection, can detect minimum 0.1 vol% CO2 change
High accuracy with microflow sampling at 50ml/min
Low rise-up Time (< 180ms), Response Time below 2s
Long continuous working time (depending on model)
Wide range of gas measurement (0 ~ 20%)
Sensors for Software and Hardware status
Capnogram data
Automatic zeroing

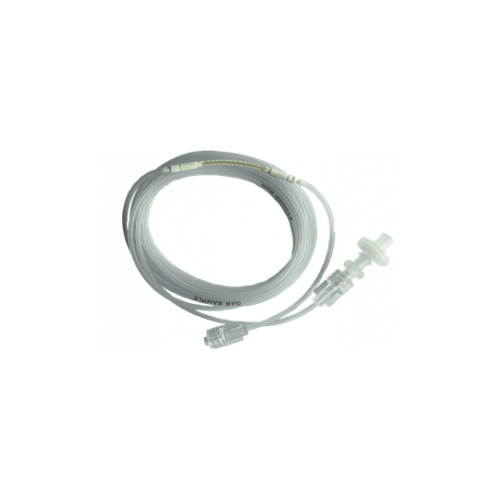

Microstream sampling line made of PFSA polymer to remove humidity
Sampling line presence detection to extend pump lifetime
Simple interfacing with RS232 serial interface via DB9 connector
Accuracy according to the requirements of ISO 80601-2-55:2011
For OEM version, can be delivered with compatible communication protocols

Electrical and Mechanical Specifications

Voltage: +5V DC, offset voltage between ±10% of full range
Power: Normal operation ≤ 1.5W
Dimension: 90mm×60mm×31mm
Weight: ≤ 180g (excluding cable)


Performances, Range and Accuracy

CO2
Range: 0 ~ 20 vol %
Resolution: 0.1 vol %
Accuracy: from 0 ~ 12 vol %, ±(0.2vol% + 2% of reading);
from 12 ~ 20 vol %, ±(0.2vol% + 6% of reading)
Respiratory Rate
Range: 0 ~ 150rpm
Accuracy: from 0 ~ 70rmp, ±1rpm; above 70rmp, undefined
Resolution: ±1rpm
Timings
Rise time: ≤ 180ms
System response time: ≤ 2s (with a 2m sampling line)
Fixed Micro Flow: 50 ml/min (±10ml/min)


Ratings

Working Conditions
Temperature: 10 ~ 40°C (50 to 104°F)
Humidity: 15 ~ 90%, non-condensation
Altitude: 500 ~ 1200hPa
Storage Conditions
Temperature: -20 ~ 70°C (4 to 158°F)
Humidity: 15 ~ 95%, non-condensation
Altitude: 400 ~ 1200hPa

External Sidestream CO2 Module Datasheet
