CapnoCOP-Zug Medical Systems SAS

CapnoCOP

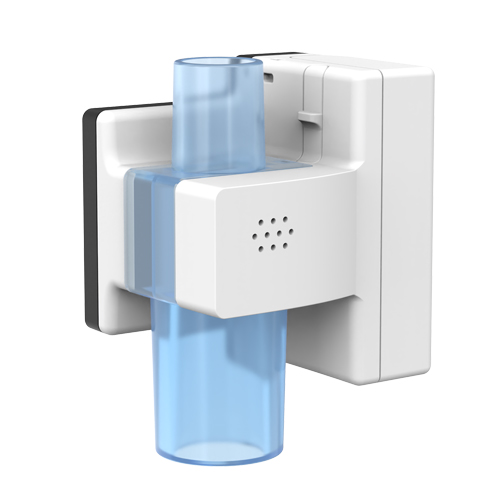

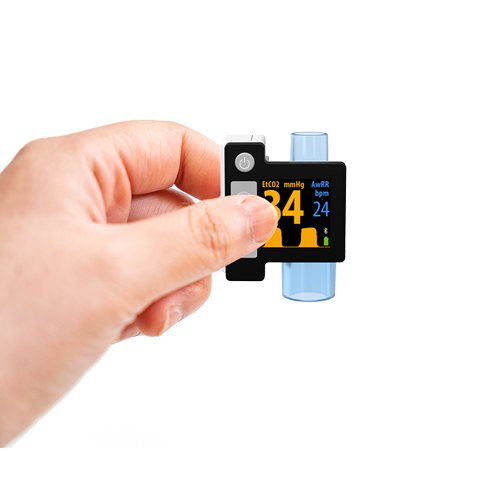

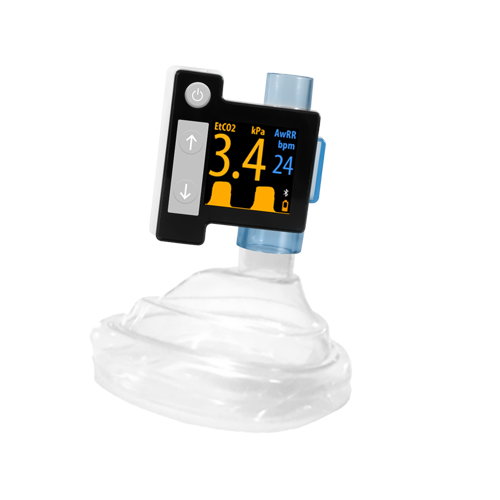

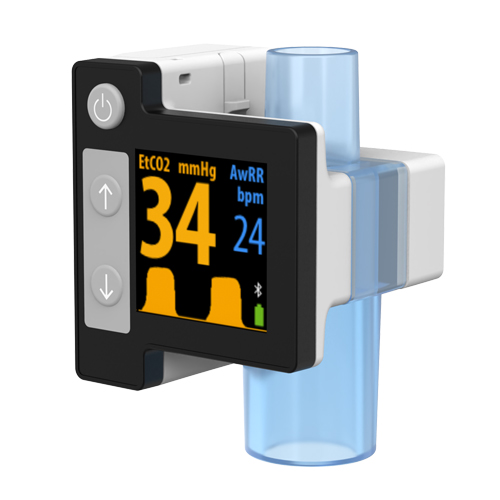

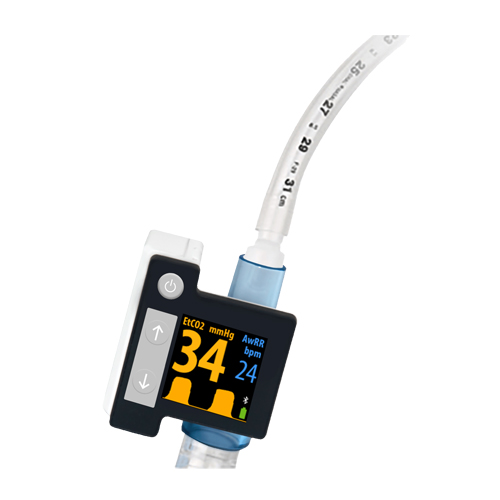

CapnoCOP CO2 Monitor is intended to provide continuous monitoring of end tidal CO2 concentration (EtCO2), Capnogram, Respiration Rate (RR) of adult, paediatric and infant patients. As a life saving device during Rapid Intervention, CapnoCOP ﬁnds its place in emergency departments just as much as in perioperative departments, spot check for both intubated and non-intubated patients, and during transport not only in ambulances but even within the hospital. Splashproof, lightweight and ﬁtting in the palm of a hand, starting up within seconds, it is an excellent device that can be used directly by both ALS and BLS providers.
CapnoCOP waveform allows a quick evaluation of the patient respiratory distress help healthcare personel for a rapide intervention.

Request details & OEM terms

Description

INTERFACES

• High standard Accuracy CO₂ measurement by dual wave length
• Splash proof and rugged design for use in harsh conditions
• 3 buttons for convenient settings adjustments, power on/oﬀ
• Adjustable Sweep speed
• Selectable units mmHg, kPa, %
• Apnea detection and adjustable
• Conﬁgurable alarms for Respiration rate alarm, EtCO₂ high and low, clogged or missing adapter

• Low battery indicator

• Visual and audible (buzzer) alarm

• Real-time Capnogram display
• Up to 6.5 hours continuous use
• Adult and neonatal airway adapters
• Ultra lightweight
• No annual routine calibration required
• Support english, italian, french polish (other language upon request)
• Bluetooth connectivity to export real time data

MECHANICAL AND ENVIRONMENT

Mechanical and Environment

・Dimensions： 54 x 49 x 41 mm (2.1 x 1.9 x 1.6 inches)
・Weight： ~80 g (complete device with batteries), < 350grs with transport pouch.
・Mechanical robustness： Meets the shock and vibration requirements for transport of SS-EN ISO 21647:2004 clause 21.102
・Temperature and Humidity： Operating: -5 to 50ºC, 10 to 90% RH, non-condensing Storage: -30 to 70ºC, <90% RH, non-condensing
・Atmospheric pressure： 70 - 120 kPa

EtCO2 Measurement

・Transducer Type： Mainstream CO₂ Monitor
・Measuring method： Dual-wavelength, non-dispersive infrared spectroscopy
・Initialization Time： Capnogram, displayed within few seconds at an ambient temperature of 25ºC, and full speciﬁcations within 1-2 minutes especially if temperature below 15ºC
・CO2 Measurement Range： 0 to 99 mmHg, 0 to 9.9%, 0 to 9.9 kPa
・CO2 Accuracy： ±(0.2% + 2% of reading)
・Total system response time： < 1s
・Calibration： No routine user calibration required. An airway adapter zero is required when changing to a new airway adapter
・Recovery time after deﬁbrillator test: Unaﬀected

Respiration Rate Measurement

・Respiratory rate Range： 0~150 Breaths Per Minute (BPM)
・Respiration Rate Accuracy： ±1BPM
・Breath detect： Adaptive threshold, minimum 1 % CO₂ change
・Airway Adapters： < 5 cc dead space (adult/Pediatric), < 1 cc dead space( infant)

Human Machine Interface

・Display： Active OLED color graphic display, 65 000 colors, 128 x 128 pixels Multi-languages(English, French, Italian, Hungarian, polish and more to be supported)
・Front Panel Buttons： 3 buttons: power on/oﬀ, up/down selection
・Alarms： No Adapter, Clogged Adapter, No Breath Detected, High AwRR, Low ETCO2, High ETCO2, Temperature out of range, Atmospheric pressure is over operating range, Low Battery

Power Speciﬁcations

・External Supply： None
・Power Consumption： TBD
・Batteries： Two AAA Cell batteries (2x1.5VDC): Alkaline IEC:LR03 or Energizer Ultimate Lithium batteries
・Battery life： time Duracell Plus Alkaline: ~2 hours Lithium : ~7 hours

Regulatory Compliance

・Certiﬁcate： CE
・Standards compliance： IEC 60601-1:2012 IEC 60601-1-8:2012 IEC 60601-1-12:2014 ISO 80601-2-55:2018

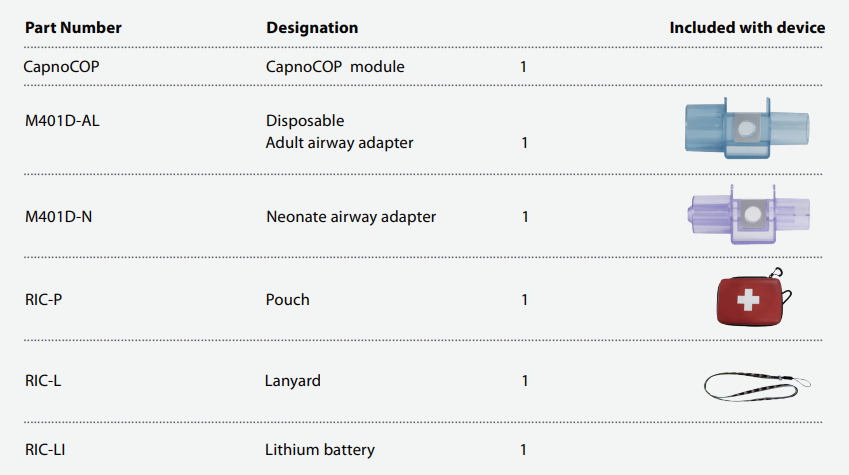

・Box content： CapnoCOP capnograph, adult and neonate airway adapters, Lithium battery, lanyard and pouch

DOWNLOADS

CapnoCOP Rapid Intervention Capnograph.pdf
