Excellent Performance：
• The monitor adopts a modular design and a compact structure to meet the needs of various different parameter detections. It is suitable for adults, children and newborns.

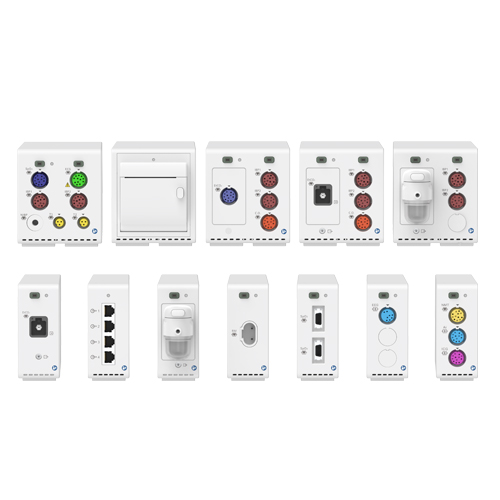

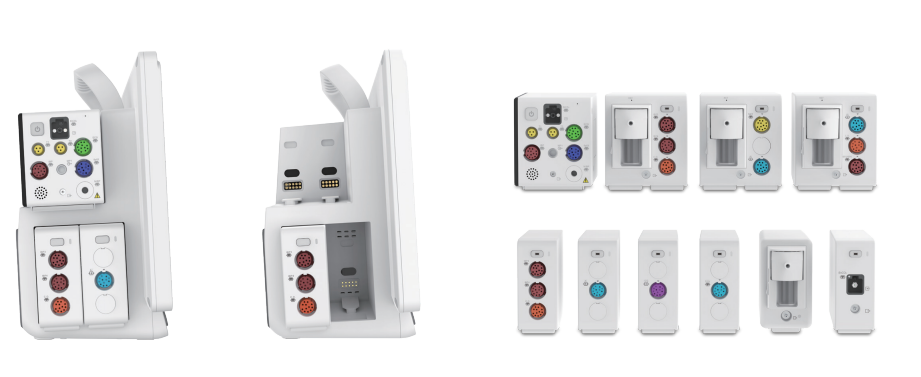

• Upgradable module is interchangeable (plug and play type).

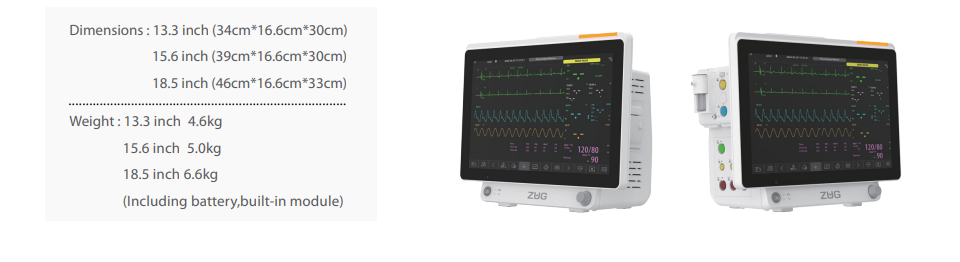

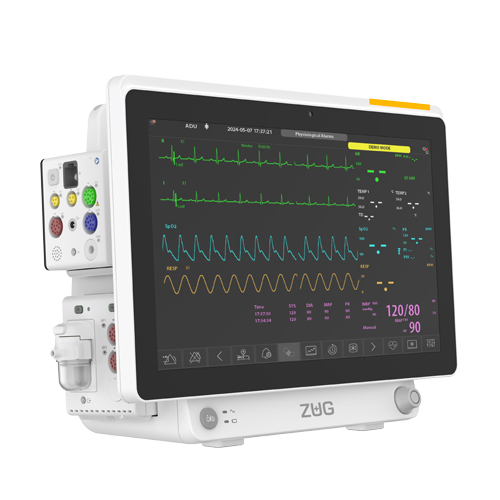

• 13.3 inches/15.6 inches/18.5 inches colour LED screen with touch screen and /or rotator knob.
• Multiple screen layout to view big font size in numeric and waveform.
• Capable to visualize 6 or more waveform. IBP supports colour coding for different waveforms.
• Trending facilities for upto 1200 hours of both graphical & numerical along with eventreview facility for all parameters and full waveform disclosure facility.
Powerful function：
• Standard parameters: SpO₂ , ECG, PR, RESP, NIBP,2*TEMP.
• Optional parameters: 12 Lead ECG, CO₂, 4*IBP, C.O., ICG, Ai, AG, EEG, NMT, O₂, RM;
• Arrhythmia detection and analysis in various leads. ST segment analysis with ST trend with continuous display of ST value on screen.
• Different visual alarm with colour coding and audible alarms for variousparameters with three levels of volume adjustment.
• A inbuilt battery backup of 4 hours. Energy-saving and low-power design extends battery life. Fanless design ensures a quieter, cleaner environment.
• Support HL7 protocol to access the Central Monitoring System.
Multi-scenario application: Intensive care/Sub-intensive care
CENTRAL MONITORING SYSTEM
• Cential Monitoring System supports up to 64 beds or 64 patients across clinical units at the same time.
• 72 hours of 64-channel holographic physiological waveform storage and review.
• Provides review of up to 240 hours trend data storage, 720 alarm events per beds.
• Bi-directional communication with WS12/WS15 Series monitors for enhanced patient care.
GENERAL
PARAMETER
| SpO₂ | ECG |
| SpO2 Range: 0~100% | ECG Range: 0.15~5.5mV |
| SpO2 Accuracy : 70~100%,±2% <70%,Undefined | ECG Resolution: 2.36uV/LSB |
| PI Range: 0~20% | HR Range : 15~300bpm(adult) 15~350bpm(child/neonate) |
| PVI Range: 0.001% | HR Accuracy : ±1bpm or ±1% (whichever is greater) |
| PR Range: 25~300bpm | RR Range : Adult: 0~120bpm Pediatric, Neonate: 0~150bpm |
| PR Accuracy: ±3bpm | RR Accuracy : 6~150rpm : ±2rpm or ±2% <6rpm:Undefined |
TEMP
Range: 0-50°C
Accuracy: ±0.1°C
Resolution: 0.1°C
NIBP
Static Pressure Range: 0~300mmHg
Static Pressure Accuracy: ±2mmHg or ±1% of reading (take the larger value)
Static Pressure Resolution: 1mmHg
Blood pressure SYS Range: Adult: 40-270mmHg
Pediatric: 40-235mmHg
Neonate: 25-130mmHg
Blood pressure DIA Range: Adult: 10-210mmHg
Pediatric: 10-200mmHg
Neonate: 10-90mmHg
Blood pressure Mean Range: Adult: 20-230mmHg
Pediatric: 20-225mmHg
Neonate: 15-100mmHg
Blood pressure Accuracy: The mean deviation<±5mmHg The standard deviation<8mmHg
CO (Optional)
Range: 0.20~20.00L/Min
Accuracy: ±0.2 L/Min or ±5% of the reading (which one is larger)
IBP (Optional)
Pressure Range: -50~400mmHg
Accuracy: ±2mmHg or ±1% of reading (take thelarger value)
PR Range: 20~350bpm
PR Accuracy: ±3bpm
EtCO₂ (Optional)
CO2 Range: 0~20.0vol%
CO2 Accuracy: 0~12vol%: ± (0.2vol% + 2% of reading)
12~20vol%: ± (0.2vol% + 6% of reading)
AwRR Range: 0~150rpm
AwRR Accuracy: mainstream: 0~150rpm, ±1rpm
Sidestream: 0~70rpm, ±1rpm >70rpm,Undefined
