Excellent Performance：
• LowPulseStrTM SpO₂ algorithm more reliable readings of SpO₂ during low perfusion and motion.
• iFastBP® NIBP algorithm used for fast and comfortable measurement.
• wSmartHeart® ECG technology for more safey monitoring of patient.
• iRealRespTM Breating rate technology to get the real reading during motion.
• wSmartGas® Capnograph technology to get reliable reading during multi-environment.
• eTeleViewTM Central Montior system support.
Powerful function：
• Multi display mode other beds view/Big font.
• Wi-Fi connectivity more flexible application.
• Easy to use with excellent usability.
• 5.5" capacitive touchscreen display with smart control.
• up to 48 hours of full disclosure.
• Standard 2.4/5 GHz dual band wireless communication and Bluetooth.
• Flexible longer battery time design without EtCO₂.
• IP44 grade particle and water resistant.
• Serves as the core plug-in modular for W-Series & F-Series monitors.

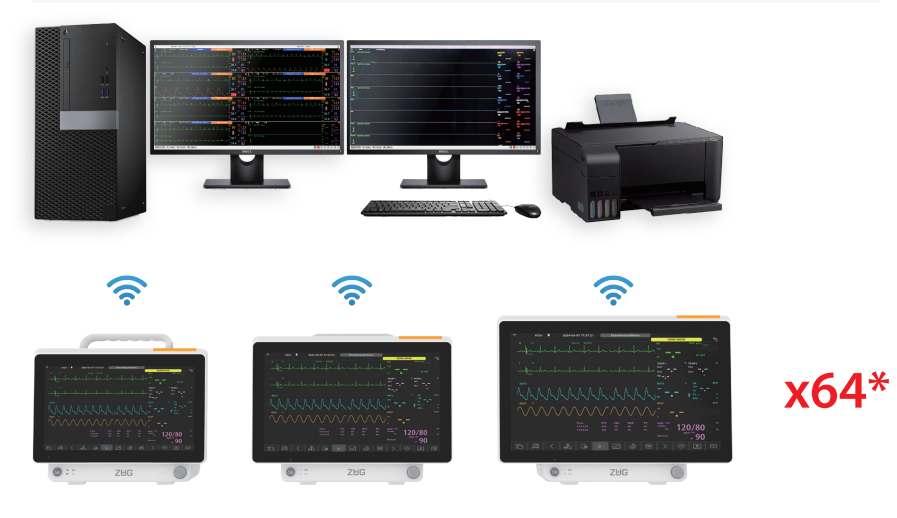

CENTRAL MONITORING SYSTEM
• Central Monitoring System supports up to 64 beds or 64 patients across clinical units at the same time.
• 240 hours of 64-channel holographic physiological waveform storage and review.
• Provides review of up to 240 hours trend data storage, 720 alarm events per beds.
• Bi-directional communication with monitors for enhanced patient care.
| Standard application | Optional application |
| 3/5leads ECG | 12Leads ECG |
| NIBP | IBP*2 |
| RESP | EtCO2 (TiniStream) |
| SpO₂ | Central monitor system |
| PR | WIFI |
| HR | Docking station |
| TEMP | |
| Touch screen |
PARAMETER
| SpO₂ | ECG |
| SpO₂ Range: 0~100% | ECG Range: 0.15~5.5mV |
| SpO2 Accuracy : 70~100%,±2% <70%,Undefined | ECG Resolution: 2.36uV/LSB |
| PI Range: 0~20% | HR Range : Adult: 15~300bpm Pediatric, Neonate: 15~350bpm |
| PVI Range: 0.001% | HR Accuracy : ±1bpm or ±1% (whichever is greater) |
| PR Range: 25~300bpm | RR Range : Adult: 0~120bpm Pediatric, Neonate: 0~150bpm |
| PR Accuracy: ±3bpm | RR Accuracy : 15~150rpm : ±2rpm or ±2% <15rpm:Undefined |
TEMP
Range: 0-50°C
Accuracy: ±0.1°C
Resolution: 0.1°C
RESP
Range: 0~120rpm
Accuracy: 15~120rpm; ±2rpm or ±2% of the reading
(which one is larger); Others, undefined
Resolution: 1rpm
NIBP
Static Pressure Range: 0~300mmHg
Static Pressure Accuracy: ±2mmHg or ±1% of reading (take the larger value)
Static Pressure Resolution: 1mmHg
Blood pressure SYS Range: Adult: 40-270mmHg
Pediatric: 40-235mmHg
Neonate: 25-130mmHg
Blood pressure DIA Range: Adult: 10-210mmHg
Pediatric: 10-200mmHg
Neonate: 10-90mmHg
Blood pressure Mean Range: Adult: 20-230mmHg
Pediatric: 20-225mmHg
Neonate: 15-100mmHg
Blood pressure Accuracy: The mean deviation<±5mmHg The standard deviation<8mmHg
IBP (Optional)
Pressure Range: -50~400mmHg
Accuracy: ±2mmHg or ±1%
PR Range: 20~350bpm
PR Accuracy: ±3bpm
EtCO₂ (Optional)
CO₂ Range: 0~20.0vol%
CO₂ Accuracy: 0~12vol%: ± (0.2vol% + 2% of reading) 12~20vol%: ± (0.2vol% + 6% of reading)
AwRR Range: 0~150rpm
AwRR Accuracy: mainstream: 0~150rpm, ±1rpm
Sidestream: 0~70rpm, ±1rpm 71~150rpm, Undefined
