Power supply: 2XAAA battery/lithium battery; Small but not simple, plug and play; Intelligent data transfer.
• High standard Accuracy CO₂ measurement by dual wave length
• Splash proof and rugged design for use in harsh conditions
• 4 buttons for convenient settings adjustments, alarm pause and power on/off
• Adjustable Sweep speed
• Selectable units mmHg, kPa, %
• Apnea detection and adjustable
• Configurable alarms for Respiration rate alarm, EtCO₂ high and low, clogged or missing adapter
• Low battery indicator
• Visual and audible (buzzer) alarm
• Real-time Capnogram display
• Up to 4 hours continuous use

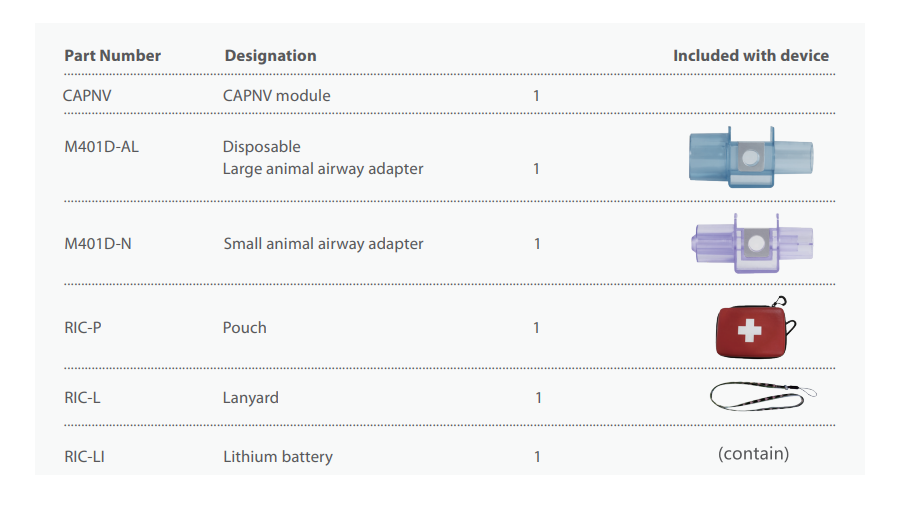

• Large animals and small animals airway adapters
• Ultra lightweight
• No annual routine calibration required
• Support english, italian, french, hungarian,polish (other language upon request)

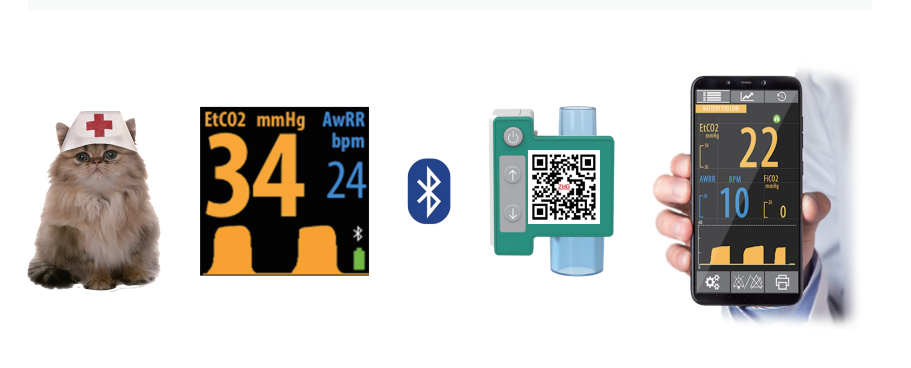

• Bluetooth connectivity to export real time data
Mechanical and Environment
| Dimensions | 60 x 47 x 43 mm (2.36 x 1.85 x 1.69 inches) |
| Weight | ~80 g (complete device with batteries), < 350grs with transport pouch. |
| Mechanical robustness | Meets the shock and vibration requirements for transport of SS-EN ISO 21647:2004 clause 21.102 |
| Temperature and Humidity | Operating: -5 to 50ºC, 10 to 90% RH, non-condensing Storage: -30 to 70ºC, <90% RH, non-condensing |
| Atmospheric pressure | 70 - 120 kPa |

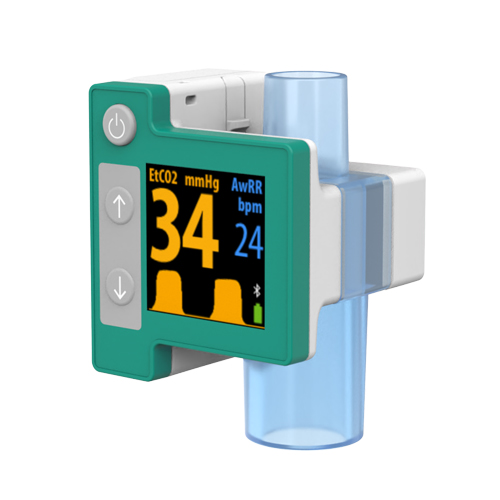

| Transducer Type | Mainstream CO₂ Monitor |
| Measuring method | Dual-wavelength, non-dispersive infrared spectroscopy |
| Initialization Time | Capnogram, displayed within few seconds at an ambient temperature of 25ºC, and full specifications within 1-2 minutes especially if temperature below 15ºC |
| CO2 Measurement Range | 0 to 99 mmHg, 0 to 9.9%, 0 to 9.9 kPa |
| CO2 Accuracy | ±(0.2% + 2% of reading) |
| Total system response time | < 1s |
| Calibration | No routine user calibration required. An airway adapter zero is required when changing to a new airway adapter |
| Recovery time after defibrillator test | Unaffected |
| Respiratory rate Range | 0~150 Breaths Per Minute (BPM) |
| Respiration Rate Accuracy | ±1BPM |
| Breath detect | Adaptive threshold, minimum 1 % CO2 change |

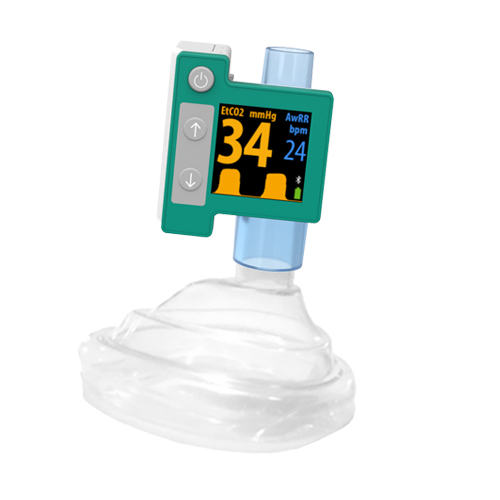

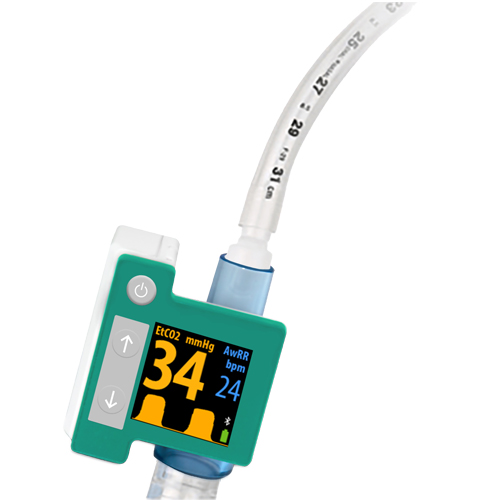

| Airway Adapters | < 5 cc dead space ( large animals), < 1 cc dead space( small animals ) |
Animals Machin Interface
| Display | Active OLED color graphic display, 65 000 colors, 128 x 128 pixels Multi-languages(English, French, Italian, Hungarian, polish and more to be supported) |

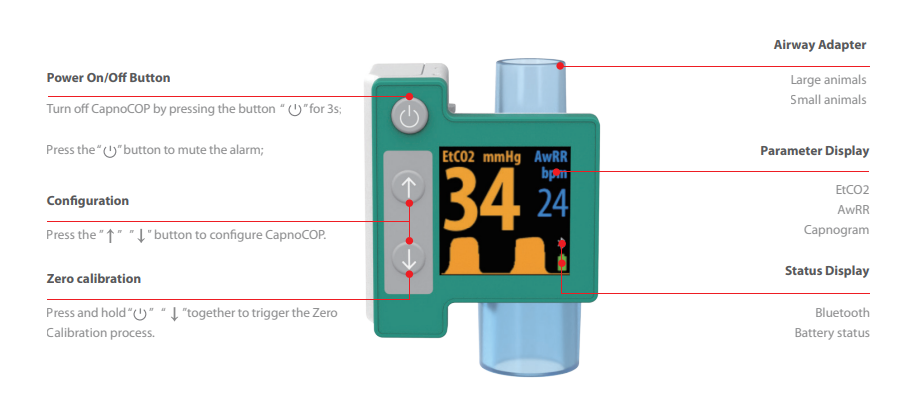

| Front Panel Buttons | 4 buttons: power on/off, alarm pause, up/down selection |
| Alarms | No Adapter, Clogged Adapter, No Breath Detected, High AwRR, Low ETCO2, High ETCO2, Temperature out of range, Atmospheric pressure is over operating range, Low Battery |
| External Supply | None |
| Power Consumption | TBD |
| Batteries | Two AAA Cell batteries(2x1.5VDC): Alkaline IEC:LR03 or Energizer Ultimate Lithium L92 batteries. Use of other Lithium batteries may present a risk of fire or explosion |
| Battery life time | Duracell Plus Alkaline: ~4 hours Energizer Ultimate Lithium L92: ~7 hours |
Regulatory Compliance
| Certificate | CE |
| Standards compliance | IEC 60601-1:2012 IEC 60601-1-8:2012 IEC 60601-1-12:2014 ISO 80601-2-55:2018 |
