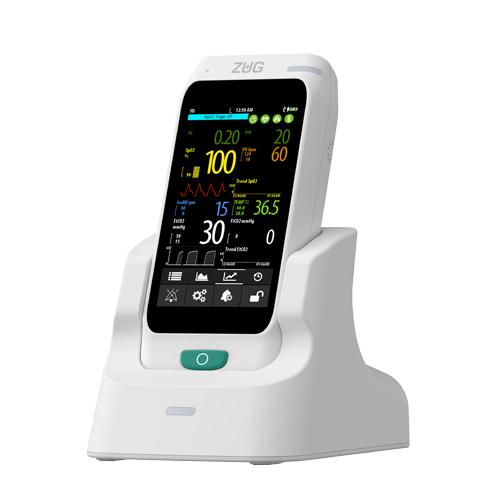

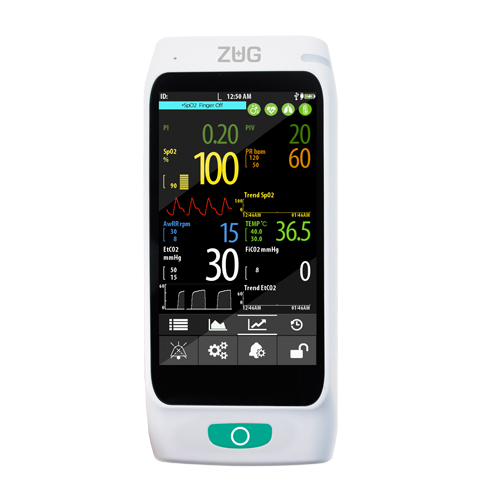

> The veterinary version of LowPulseStrTM SpO2 algorithm provides more reliable SpO2 readings during low perfusion and exercise.
> The veterinary version of iFastBP®  NIBP has stronger anti-interference capability.
> The veterinary version of wSmartHeart®  ECG technology.
> The veterinary version of wSmartGas®  Capnograph technology are reliable for various animal applications.

> Multi-mode display interface, information trend record
> Sound and light double alarm
> Adjustable screen brightness
> Four monitor models to choose from
> Dedicated base, rechargeable, connect to the Internet
> Equipped with 10500mA lithium battery
> Up to 5H battery life

Flexible Application：
• Animal care
• Emergency
• Operating room

More than a Conventional
• Patient manage system,Data transmission connectivity ability via flexible protocol
• Selectable parameters include Capnography,Puse Rate,SPO₂ and temperature
• Easy to use by any user, clinical professional and home-care,Excellent Usability Engineering project design

SPO₂

◆ Range :0~100%

◆ Accuracy : ±2%（70%~100%）Undefined (<69%）

◆ Resolution: 1%

PR

◆ Range : 25~350bpm

◆ Accuracy : ±3bpm

◆ Resolution: 1bpm P

EtCO₂

◆ Range : 0~20vol%

◆ Accuracy : 0~12 vol%：±(0.2vol%+2%of reading） 12.1~20vol%：±(0.2vol%+6%of reading）

◆ Resolution: 1mmHg

TEMP

◆ Range : 0~50℃

◆ Accuracy : ±0.1℃

◆ Resolution: 0.1℃

AwRR

◆ Range : 0~150rpm

◆ Accuracy : ±1rpm（0~70rpm） Undefined （within other ranges）

◆ Resolution: 1rpm

Physical parameter

Dimensions     80x45x180mm

Weight            <2kg(Without accessories)

Operating environment

Operating humidity 15%~95%RH,non-condensing

Operating temperature 0℃~40℃

Power supply AC100~240V(±10%) (50/60HZ) ±3HZ, 60VA

SATPV Handheld Vital Signs_07.pdf
