・Light weight, small size, high precision
・plug and play
・Service life is >40,000 hours
・System response time is <1S
・Efficient anti-condensation design
・Atmospheric pressure , temperature, manual anesthetic gas compensation
・Multiple defined interfaces, support customer customization

CO2

Range                 0~20.0vol%
Accuracy              0~12.0vol%:±(0.2vol%+2% of reading)
                          12.0~20.0vol%:±(0.2vol%+6% of reading)
Resolution           1mmHg

RR

Range                0~150rpm
Accuracy            ±1rpm
Resolution          1rpm

Physical Parameter

Weight ≤ 35 g

Size 43x32x26mm

Electical Specification

Power supply                     DC.5V±5%

Power consumption            Rated input power: ≤1.5W (working steady state);

                                        Maximum power after power-on: ≤2.5W (preheating)

Communication                  RS232 ,19200bps,or User defined

Operating Environment

Operating temperature         0~50°C(32°F - 122°F)
Operating humidity                   15~90%RH,non-condensing
Atmospheric pressure                500-1200hpa

Storage Environment

Storage temperature         -20~70°C(4°F - 158°F)
Storage humidity                   15~90%RH,non-condensing
Atmospheric pressure                400-1200hpa

Power and communication interface

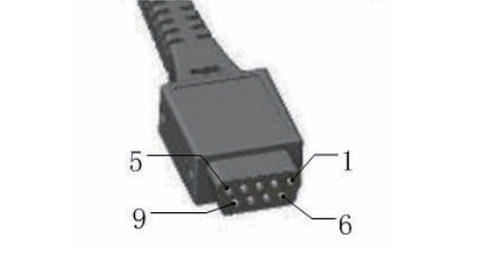

The power and communication interface sockets use standard female DB9 connectors, and the pin definition diagram is as follows:

Note: The serial port is RS232 level.
