Features
・High precision, support 50ml/min applications
・Working life of continuous pumping is >20000 hours
・Rise time is less than 180ms; system response time is < 2s
・Automatic zero calibration, the measurement of respiratory rate reaches 150rpm
・The TiniLine® 8 filter with patent designed by Witleaf, can remove vapor, mucus and bacteria in the sampling line
・Automatic atmospheric pressure, temperature, manual anesthetic gas compensation, and manual btps compensation.
Specifications CO2
Range 0~20.0vol%
Accuracy 0~12.0vol%:±(0.2vol%+2% of reading)
12.0~20.0vol%:±(0.2vol%+6% of reading)
Resolution 1mmHg
RR
Range 0~150rpm
Accuracy 0~70rpm : ±1rpm
>70rpm : Undefined
Resolution 1rpm
Physical Parameter
Weight ≤120g
Size 75x60x37mm
Electical Specification
Power supply DC.5V±5%
Power consumption ≤1.5W, steady state;
≤2.5W, when the oxygen sensor is running;
≤2.5W, the maximum power during zero calibration;
≤3.5 W, the maximum power with oxygen sensor zero calibration;
Communication RS232 or TTL,19200bps,or User defined
Operating Environment
Operating temperature 10~40°C(50°F - 104°F)
Operating humidity 15~90%RH,non-condensing
Atmospheric pressure 500-1200hpa
Storage Environment
Storage temperature -20~70°C (4°F - 158°F)
Storage humidity 15~95%RH,non-condensing
Atmospheric pressure 400-1200hpa

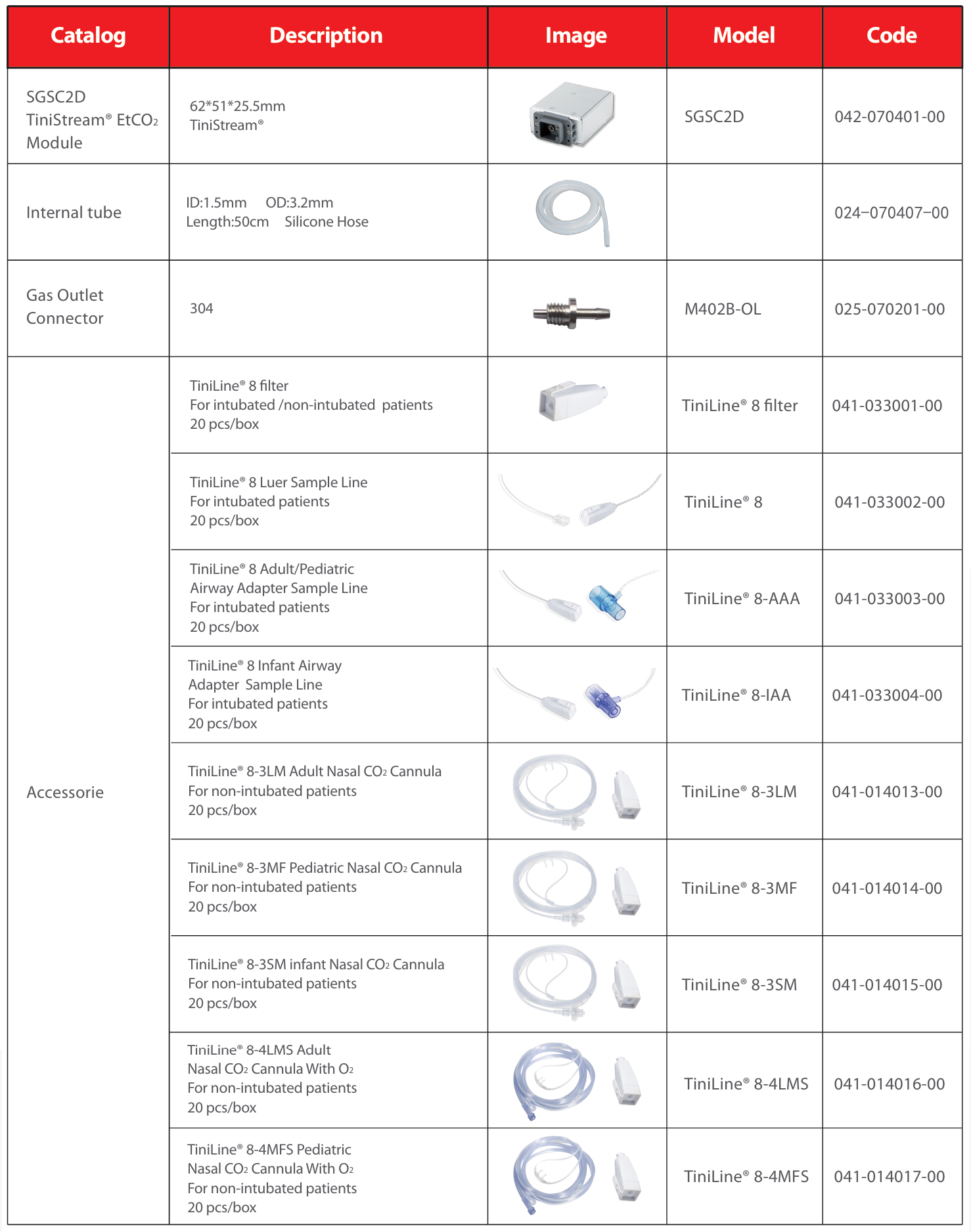

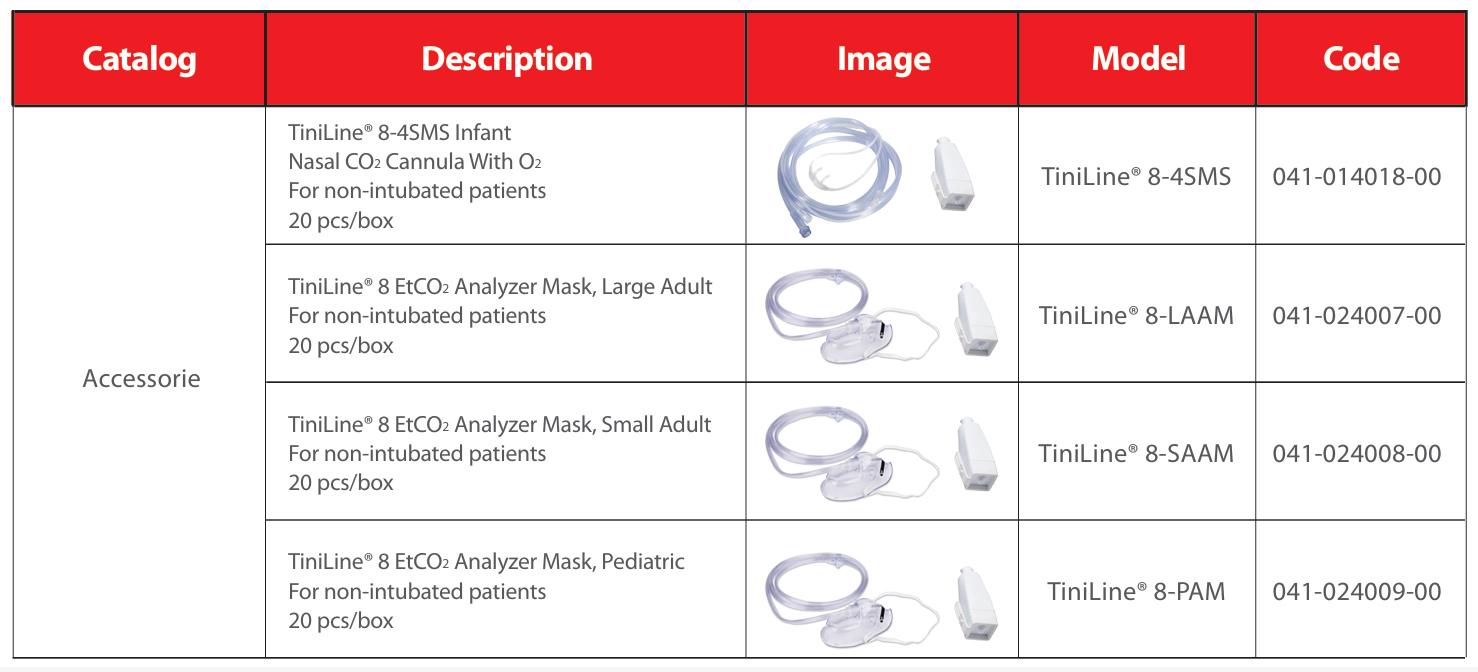

Purchase Guider
