Features
・ Ergonomic design, beautiful and exquisite
・Micro flow sampling, high precision
・Working life is >20000 hours
・Perform automatic zero calibration after booting
・The TiniLine® 8 filter with patent designed by Witleaf, can remove vapor, mucus and bacteria in the sampling line
・Support sampling tube falling off monitoring
・The standard DB9 interface is consistent with the mainstream module, and the main and side streams can be switched at will

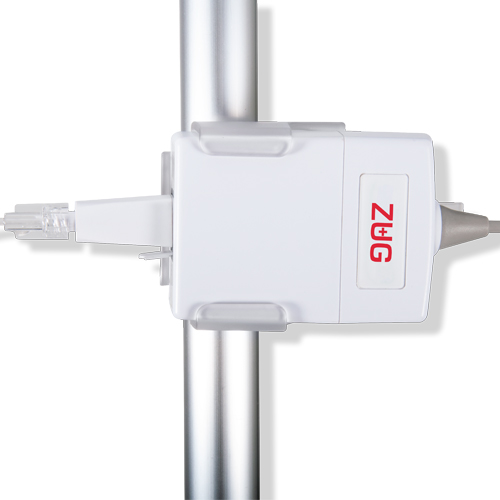

・Equipped with independent hanging bracket
Specifications
CO2
Range 0~20.0vol%
Accuracy 0~12.0vol%:±(0.2vol%+2% of reading)
12.0~20.0vol%:±(0.2vol%+6% of reading)
Resolution 1mmHg
RR
Range 0~150rpm
Accuracy 0~70rpm : ±1rpm
>70rpm : Undefined
Resolution 1rpm
Physical Parameter
Weight ≤180g
Size 80x58x32mm
Electical Specification
Power supply DC.5V±5%
Power consumption Rated input power: ≤1.5W (working steady state);
Maximum power after power-on:
≤2.5W (zero calibration state)
Communication RS232 or TTL,19200bps,or User defined
Operating Environment
Operating temperature 0~50°C(32°F - 122°F)
Operating humidity 15~90%RH,non-condensing
Atmospheric pressure 500-1200hpa
Storage Environment
Storage temperature -20~70°C (4°F - 158°F)
Storage humidity 15~95%RH,non-condensing
Atmospheric pressure 400-1200hpa
