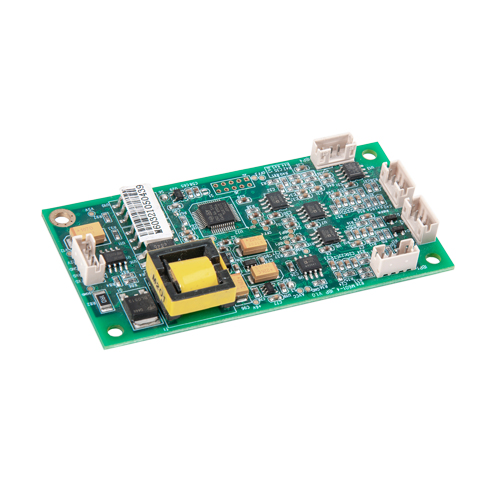

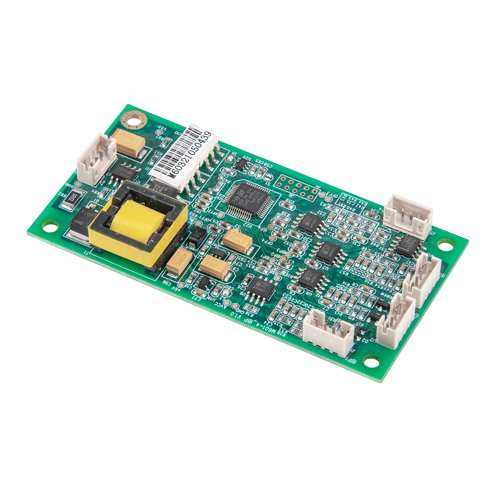

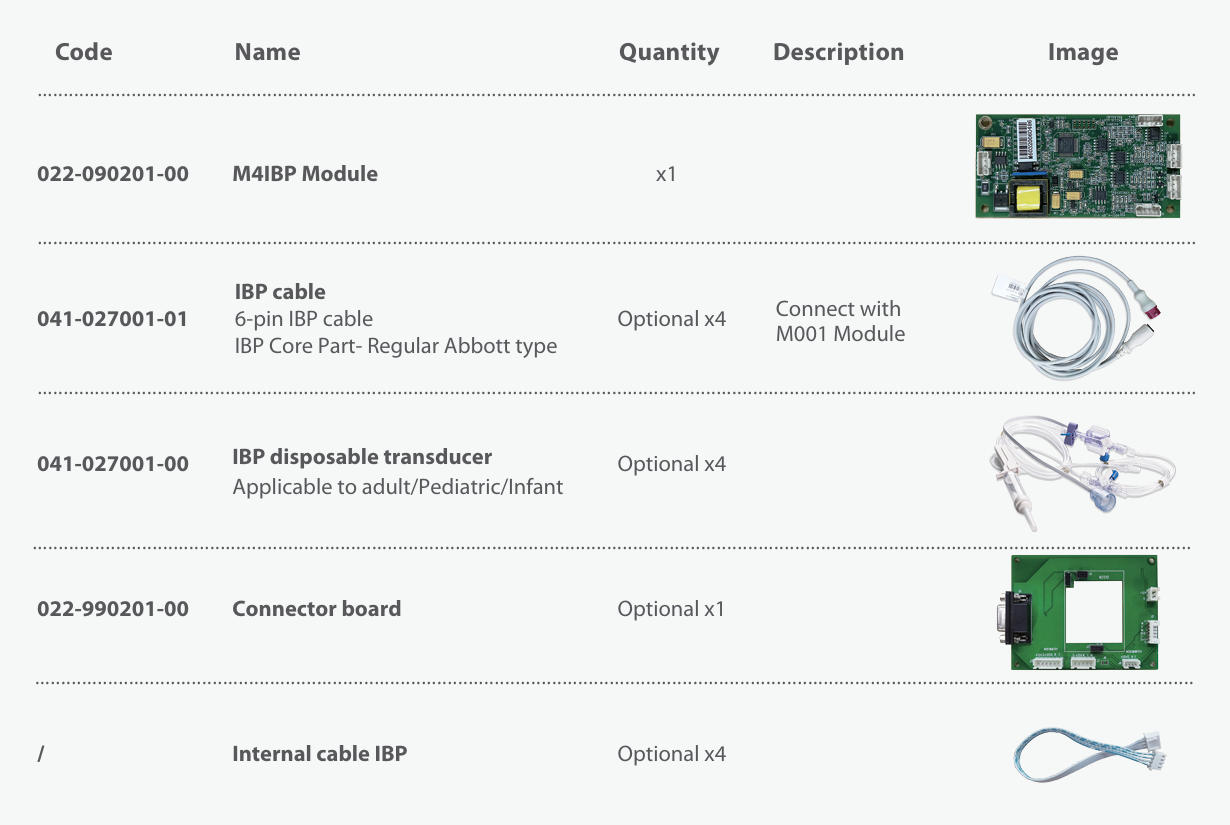

・Four-channel independent IBP measurement, including: systolic blood pressure, diastolic blood pressure, average blood pressure, pulse rate calculation
・Support setting IBP channel information
・Support setting IBP average time
・Support zero calibration and calibration operations of each IBP channel
・Support filter setting of each IBP channel

PR

Range: 25~300bpm
Accuracy: ±3bpm
Resolution: 1bpm

IBP

Range: -50~400mmHg
Accuracy: ±2mmHg or ±1% (Whichever is greater)
Resolution: 1mmHg

Applicable sensor

Sensitivity:5uV/mmHg
Impedance::300-5000Ω

Compliance

Standard: IEC 60601-2-34:2014

Electical Specification

Power supply                 DC 12 V±10%
Power consumption        ≤5W
Communication              TTL,USART
Temperature                  Operating 10°C~ 40°C (50°F ~ 104°F)      Storage  -20°C~ 70°C (4°F ~ 158°F)

Power and Communication Interfaces

Power and communication interface socket pin definition diagram:

Note 1: TXD is the data sent by the M603 invasive blood pressure module to the host. to TTL level.

Power and Communication Interfaces

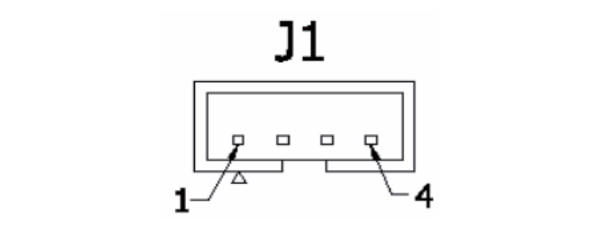

Sensor interface socket pins are defined as follows :

 Note: The sensor has four interfaces: J1, J2, J4, J5, and their pin definitions are the same.

The power and communication interface socket pins are defined as follows:

The sensor interface corresponds to the invasive pressure channel as follows:

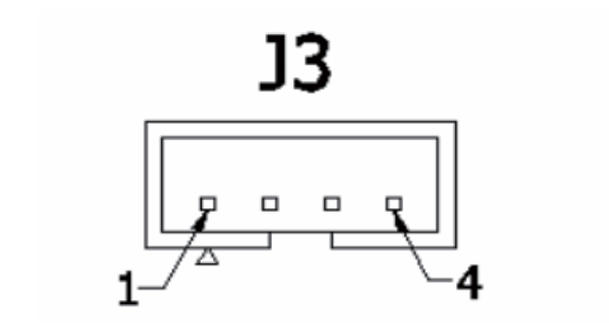

Sensor interface socket pin definition diagram:

M4IBP Invasive Blood Pressure_04
