・One-channel cardiac output measurement
・Carry out 12 hemodynamic parameter calculations after inputting relevant parameters
・Support Ti related information settings
・Support the setting of floating pipe coefficient
・Support setting CO measurement time interval
・Two independent IBP measurement channels, including: systolic blood pressure, diastolic blood pressure, average blood pressure, pulse rate calculation
・Support setting IBP channel information
・Support setting IBP average time
・Support zero calibration and calibration operations of each IBP channel
・Support filter settings of each IBP channel

PR

Range: 25~300bpm
Accuracy: ±3bpm or ±2%(Whichever is greater)
Resolution: 1bpm

IBP

Range: -50~350mmHg
Accuracy: ±2mmHg or ±1% (Whichever is greater)
Resolution: 1mmHg

Tb

Range: 23.0~45.0°C
Accuracy: ±0.5°C
Resolution: 0.1°C

Ti

Range: -1.0 ~ 27.0°C
Accuracy: ±0.5°C
Resolution: 0.1°C

CO

Range: 0.20~20.00L/Min
Accuracy: ±0.2L/Min or ±5%(Whichever is greater) Resolution: 0.01 L/Min

Compliance

Standard: IEC 60601-2-34:2014

Electical Specification

Power supply                 DC 12 V±10%
Power consumption        ≤5W
Communication              TTL,USART
Temperature                  Operating 10°C~ 40°C (50°F ~ 113°F)       Storage  -20°C~ 55°C (4°F ~ 131°F)

Sensor characteristics requirements

IBP sensor                             CO sensor/Tb
Sensitivity: 5uv/mmHg/V           Sensitivity: 520Ω/℃
Impedance: 300-5000Ω             Nominal resistance: 14KΩ

Module interface socket pin definition

The pin definitions are shown in the table below:

Note: 1. TXD is the data sent by the CO/IBP module to the host, in TTL level mode.

2. The J1, J2, and J3 sockets use the 2.0 spacing specification, and the J4 socket uses the 2.54 spacing specification.

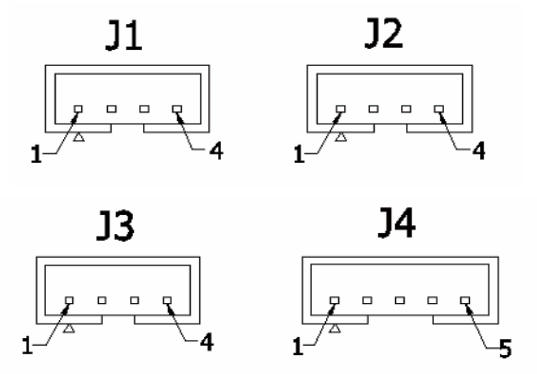

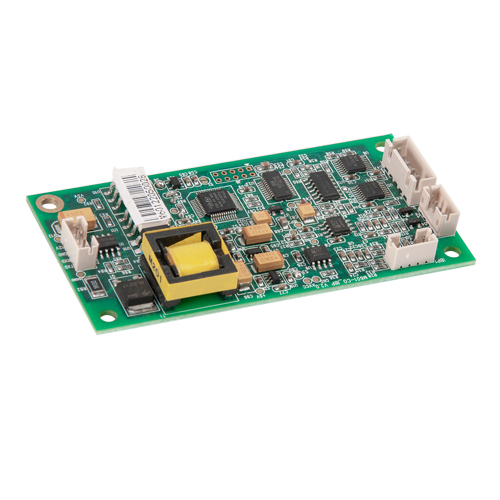

Module and External Connector Description

Signal input interface of IBP1

J1 is the 4Pins connection port, two of which are the pressure output terminals IBP1+ and IBP1-, pay attention to the polarity of the signal connection; The other two are DC power supplies.

Signal input interface of IBP2

J2 is the 4Pins connection port, two of which are the pressure output terminals IBP2+ and IBP2-, pay attention to the polarity of the signal connection; The other two are DC power supplies.

Interface of digital signal input and power input

J3 is a 4Pins connection port, two of which are serial transceivers TXD and RXD, TTL level; the other two are direct current power input.

Signal input interface for CO

J4 is the 5Pins connection port, of which 1 and 2 are the injection temperature signal port, 3 and 4 are the blood temperature signal port, 5 is the input end of the temperature calibration signal, and 2 and 4 are the two ground terminals (which are common).

MCO2IBP Invasive Blood Pressure Cardiac Output_05
