・ With pulse oxygen and pulse rate monitoring function
・With monitoring function of systolic blood pressure, diastolic blood pressure and mean pressure
・With 12-lead ECG, 3/5-lead ECG, 1 breathing, 2 body temperature monitoring functions
・Provide three patient modes: adult, child and newborn mode
・The module thickness is only 25mm, exquisite and compact
・When the perfusion index is as low as 0.075%, the blood oxygen monitoring is accurate and reliable, meeting the application of surgery and ICU
・Both blood oxygen and blood pressure adopt advanced algorithms, with anti-motion interference and weak signal measurement performance
・Blood pressure measurement has three modes: manual, automatic and continuous mode
・Blood pressure measurement has hardware and software dual overvoltage protection functions Double timeout protection for blood pressure measurement (module timeout protection, provide timing trigger port of host computer)
・The measurement results of the ECG measurement part include heart rate, body temperature, respiration and ST segment off set values of I, II, and V1 channels
・ECG measurement has diagnosis, monitoring, HARDEST and surgery modes
・ECG diagnostic analysis results include arrhythmia, conduction block, myocardial infarction, STT changes, ventricular hypertrophy, atrial enlargement, electrical axis deviation and other heart diseases

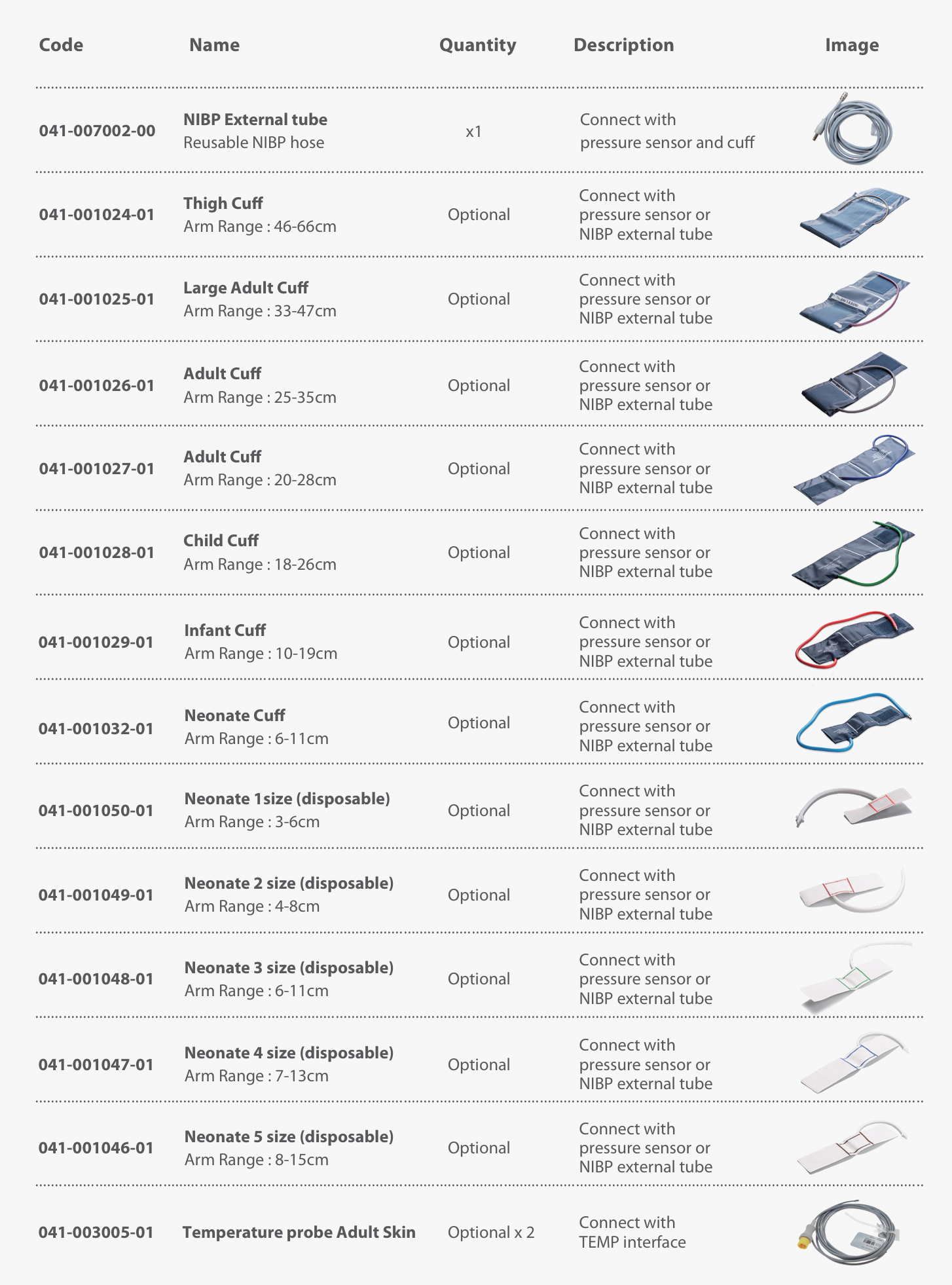

Resolution 1mmHg
Systolic Range Adult : 40–270mmHg
Pediatric : 40–235mmHgNeonate : 40–130mmHg
Distolic Range Adult : 10–210mmHg
Pediatric:10–200mmHgNeonate:10–90mmHg
Mean Range Adult : 20–230mmHg
Pediatric : 20–225mmHgStandard IEC 60601-2-27: 2011 IEC 80601-2-30: 2018 DIN EN ISO 81060-1: 2012
BS EN 1060-3:1997 +A2: 2009 ISO 80601-2-61: 2017 AAMI EC57:2012/(R)2020Power and communication interface socket pin definition diagram (Note: 4 and 6 pins are the same input, 3 and 5 pins are the same input)
Note 1: TXD is the data sent by the M103 module to the host. Note 2: J1 socket pin pitch is 2.54mm
The temperature probe interface J3 is defined as follows, and the socket spacing is 2.54mm:

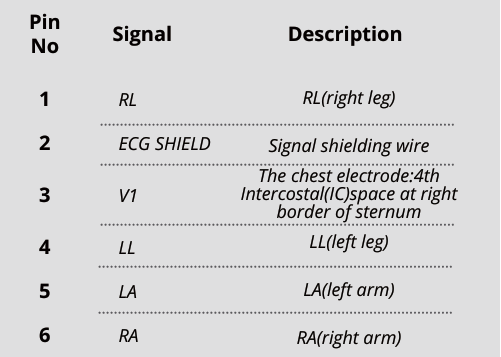

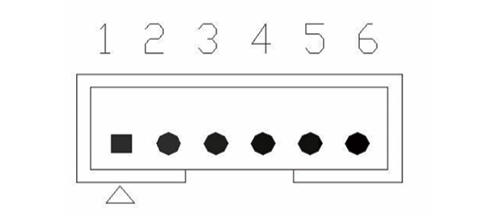

The 3/5-lead ECG lead input interface J4 is defined as follows, and the socket pin spacing is 2.54mm:
Power and communication interface socket J1 pins are defined as follows:

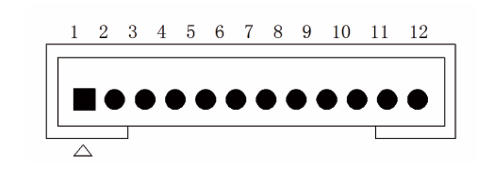

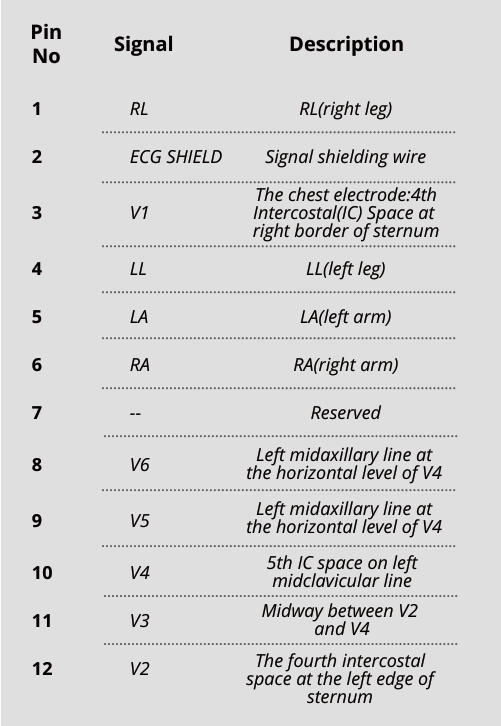

The 12-lead ECG lead input interface J4/J10 is defined as follows, and the socket pin spacing is 2.54mm:
A schematic diagram of the location of the lead electrodes is shown below:

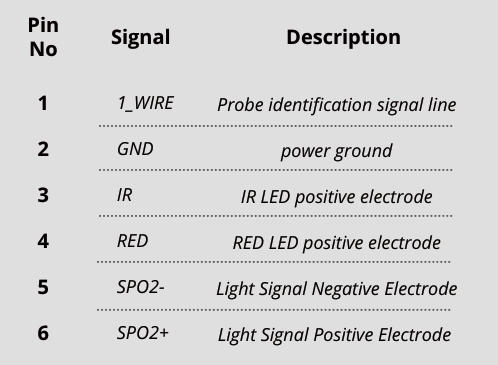

The pin definition of sensor interface socket J7 is as follows, and the socket spacing is 2mm:
