・With the monitoring function of pulse oxygen, pulse rate, perfusion index and variation index.

・Patient model: adult, child and newborn.

・Real-time transmission module working status: hardware status, software status and sensor status.

・It has the function of setting the average time of calculation parameters, and obtains the response time of different calculation parameters.

・When the blood perfusion index is as low as 0.075%, the measurement is accurate and reliable, which can meet the application of surgery and ICU.

・Adopt advanced anti-motion algorithm, with strong anti-motion performance

SPO₂

Range : 0 ~ 100%Range: 0~100%
Accuracy: ±2%(70%~100%)
               Undefined(0~69%)
Resolution: 1%


PR

Range : 25 ~ 250bpm Range: 25~300bpm

Accuracy: ±3bpm

Resolution: 1bpm

PI

Range: 0~20%
Accuracy: Undefined
Resolution: 0.001%

PVI

Range: 100%
Accuracy: Undefined
Resolution: 1%

Electical Specification

Power supply：DC.5V±2%
Power consumption：≤1W
Communication：TTL,USART
Temperature：Operating 0°C~ 70°C
Storage：-40°C~ 70°C

Compliance

Standard     ISO 80601-2-61: 2017
                    IEC 60601-1-2:2014

 The board dimensions are given in millimeters.

J3 interface                                                                                                   J1 interface

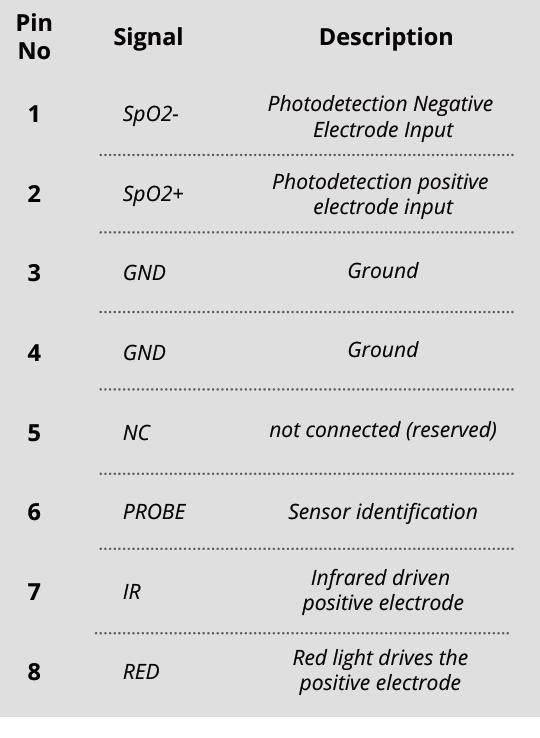

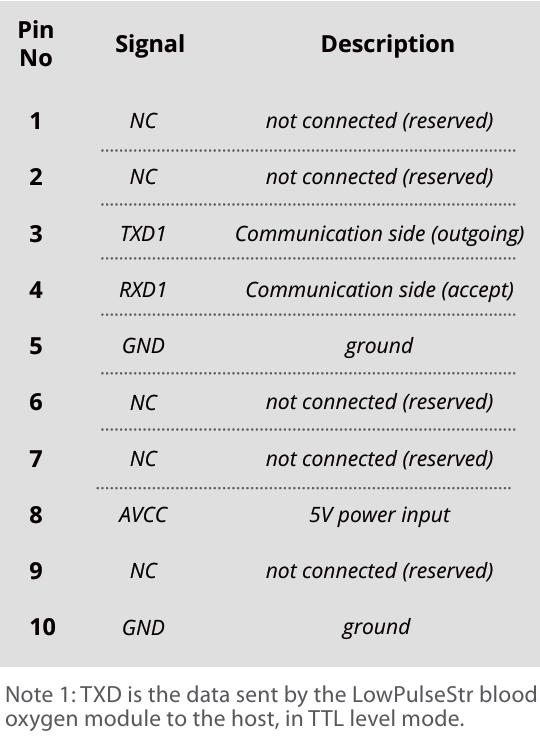

The J3 interface socket pins are defined as follows:                                                 The J1 interface socket pins are defined as follows:



MSPO2 Pulse Arterial Oxygen Saturation_04.pdf
