・Real-time measurement of pulse oxygen saturation, pulse rate, and perfusion index.
・With monitoring function of systolic blood pressure, mean blood pressure, diastolic blood pressure and pulse rate parameters.
・Real-time transmission of pulse wave signals based on infrared spectrum absorption.
・Real-time transmission of the module's working status, hardware status, software status and sensor status.
・Provides two patient modes: adult and child mode.
・It has the function of setting the average time of blood oxygen calculation parameters to obtain different response time of blood oxygen calculation parameters.
・Capable of anti-motion interference and weak signal measurement.
・Pressure calibration function: Continuously provide cuff pressure value to calibrate pressure accuracy.
・Leak detection function: detect whether the gas path is leaking.
・Excellent reliabilit

SPO₂

Range： 0~100%
Accuracy：±2%(70%~100%)
                Undefined(0~69%)
Resolution：1%

PR

Range：25~300bpm
Accuracy：±3bpm
Resolution：1bp

NIBP

Pressure Range： 0-300mmHg
Pressure Accuracy：±2mmHg or ±1%
                                 (Whichever is greater)
 Resolution：1mmHg
 Systolic Range：Adult : 40–270mmHg
                         Pediatric : 40–235mmHg
                         Neonate : 40–130mmHg
Distolic Range：Adult : 10–210mmHg
                       Pediatric:10–200mmHg
                       Neonate:10–90mmHg
 Mean Range：Adult : 20–230mmHg
                      Pediatric : 20–225mmHg
                      Neonate : 20–100mmHg
 Accuracy：The mean deviation<±5mmHg
                 The standard deviation<8mmHg

PI

Range：0~20%
Accuracy：Undefined
Resolution：0.001

Electical Specification

Power supply： DC.12V±10%        DC.5V±5%
Power consumption：DC.12V: ≤5W         DC.5V: ≤1W
Communication：TTL,USART
Temperature：Operating 0°C~ 70°C        Storage  -40°C~ 70°C

Compliance

Standard       IEC 80601-2-30: 2018       ISO 80601-2-61: 2017       IEC 60601-1-2:2014

SpO₂ probe socket                                                                                           Blood Oxygen Power Outlet

SpO₂ probe socket pins are defined as follows:                                                                    Blood Oxygen Power Outlet

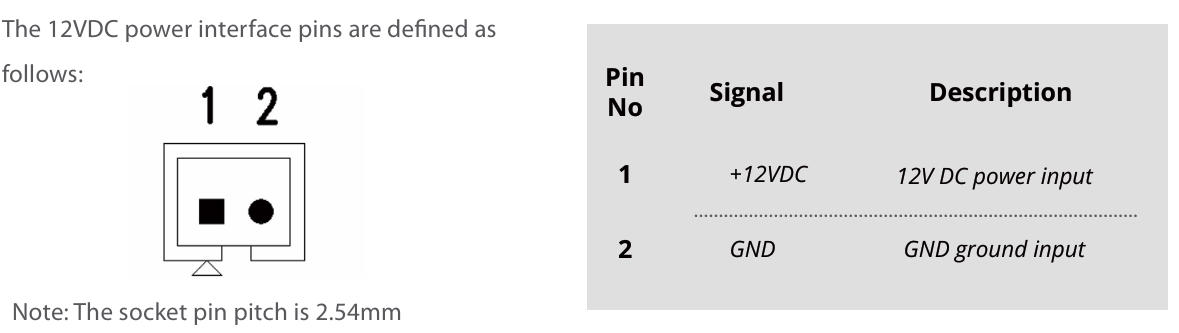

12V power connector J2

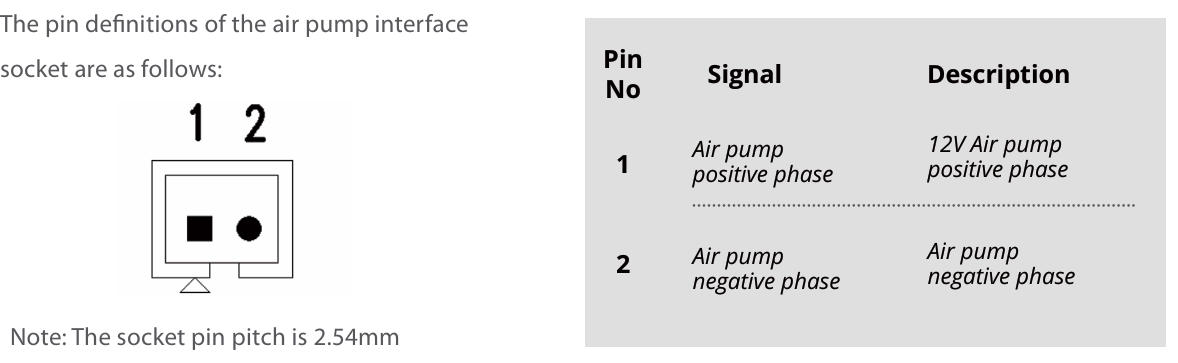

Air pump interface J6

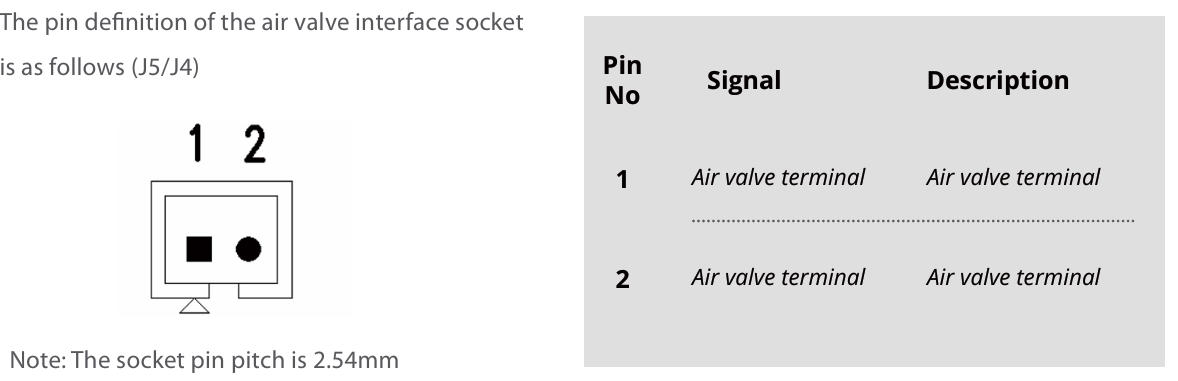

Air valve interface (J5/J4)
