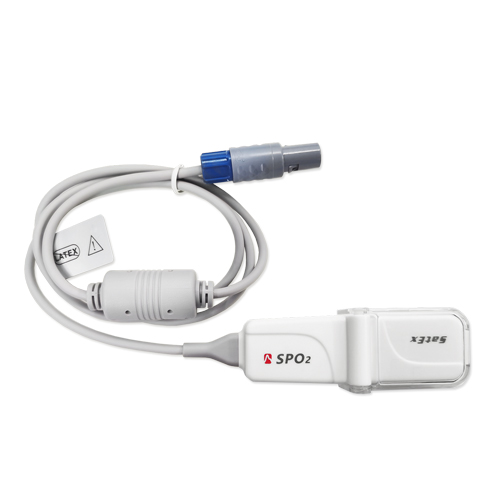

Compact, low-power, easy-to-integrate external pulse oximeter :

・ Highly reliable medical grade application module.

・Plug and play,Satisfied accuracy after power-on.

・Size :85*30.3*23mm(L*W*H),Overall length of cable:1800mm.

・Support real-time monitoring of adults,children and infant.

・Integrated outside the equipment,suitable pulse oximetry solution for medical products.

・Real-time measurement of pulse oximetry, pulse rate, perfusion index and variability index.

・Real-time transmission of pulse wave signals based on infrared spectral absorption.

・Real-time transmission of the working status, hardware status, and software status of the module.

・It has the ability to resist motion interference and weak signal measurement.

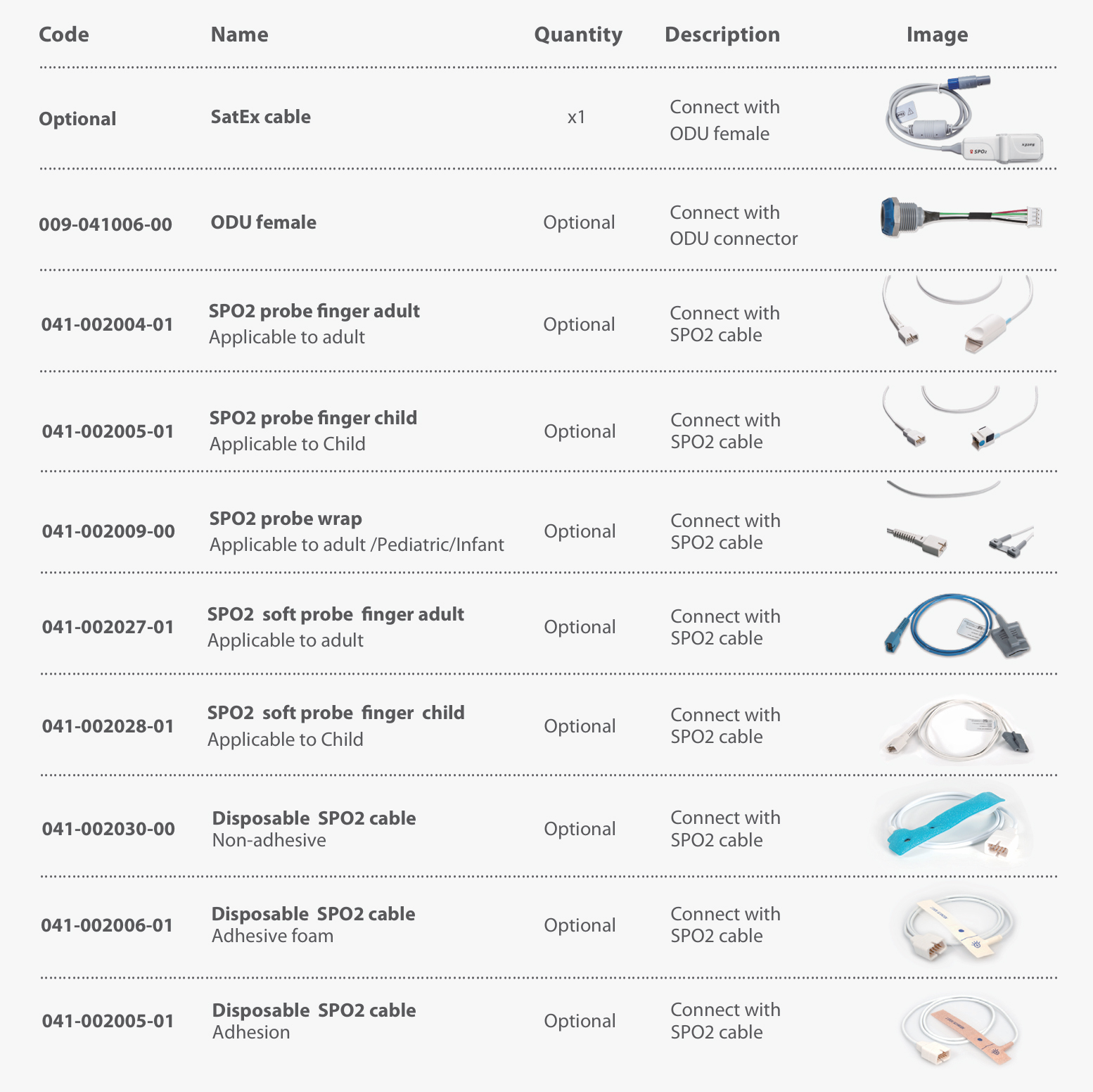

・Connectors can be customized according to customer needs.

SPO₂

Range : 0 ~ 100%
Accuracy : ±2%（70%~100%） Undefined (<70%）≤ 2.5W
Resolution: 1%


PR

Range : 25 ~ 300bpm
Accuracy : ±3bpm

Resolution: 1bpm

Electical Specification

Power supply：DC.5V±5%

Power consumption：<1W

Communication：TTL level UART mode and RS232 serial communication

Temperature：Operating 0°C~ 70°C Storage -40°C~ 70°C

Compliance

Standard ISO 80601-2-61: 2017

              IEC 60601-1-2:201
